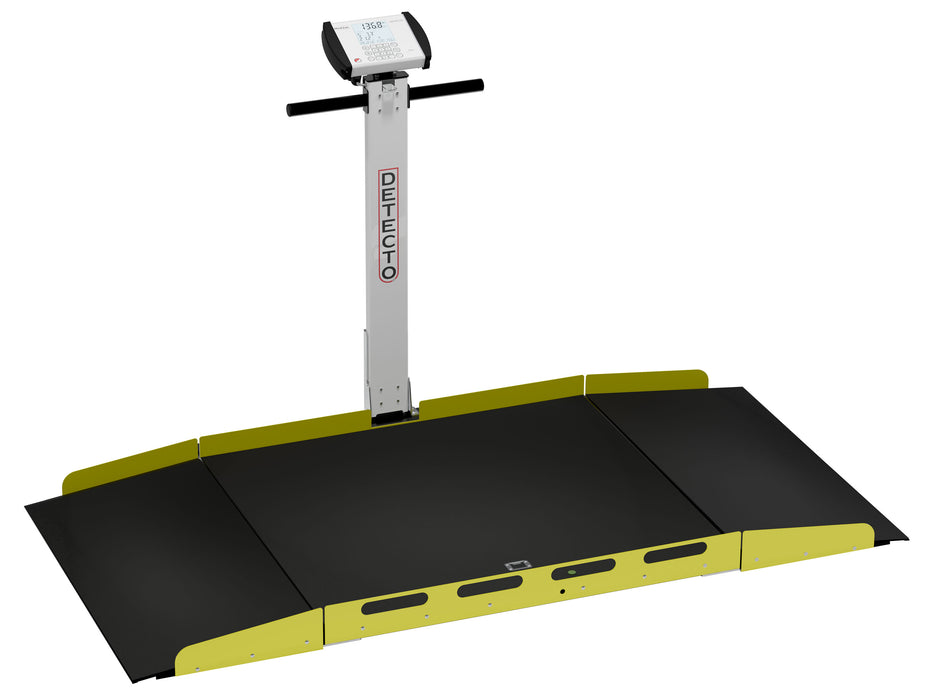

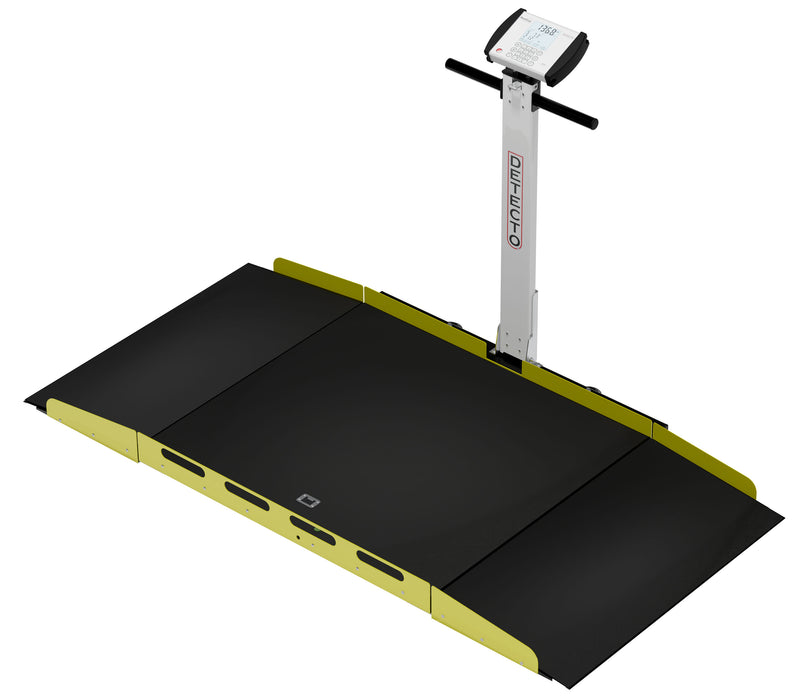

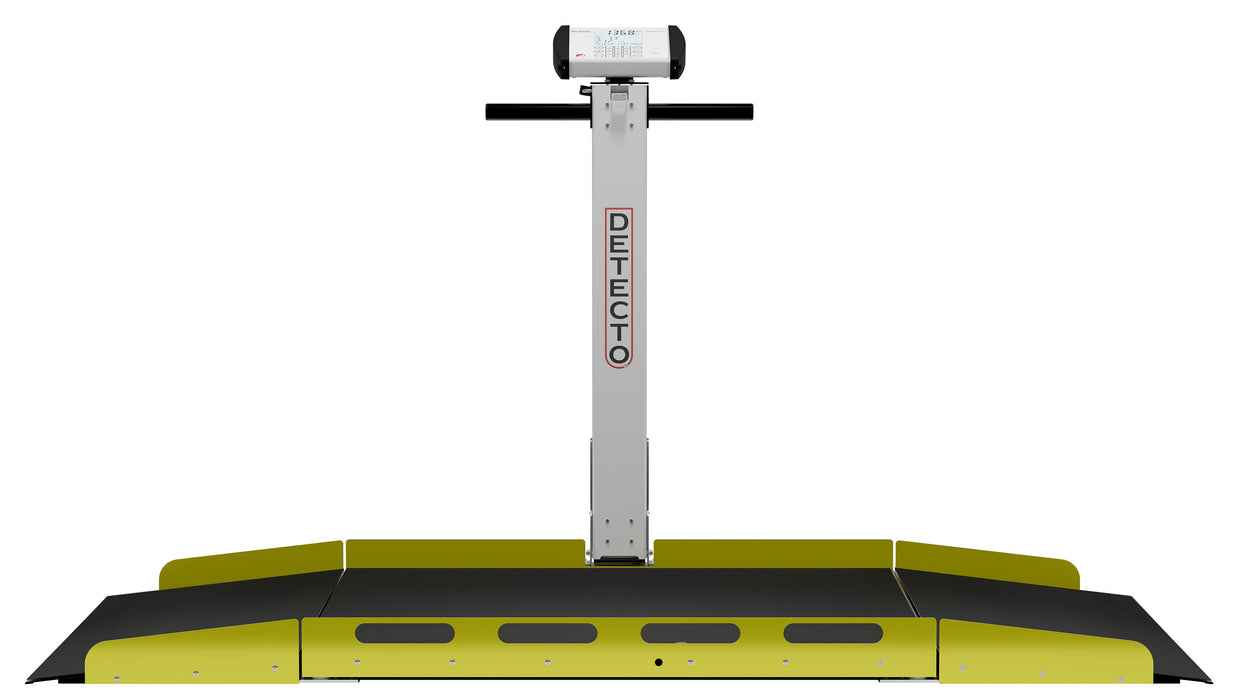

Detecto 7150-AC — ADA-Compliant Wheelchair Scale

The Cardinal Detecto 7150-AC is a roll-on wheelchair scale built around two priorities: accessibility compliance and legal-for-trade accuracy. With updated ADA accessibility standards carrying an August 9, 2026 compliance deadline, facilities upgrading their diagnostic equipment need a scale that satisfies accessibility requirements without giving up clinical precision — and the 7150-AC is NTEP certified for exactly that reason.

Accessibility starts at the ramp. Gentle 1:8 slopes rest flat on the floor so patients can roll on without a lip or lift, and the 40-inch platform gives ample room to position a chair squarely before weighing. Integrated side guide rails help keep the chair tracking straight and add reassurance during entry and exit, while the low 2-inch platform height keeps the step-up minimal for ambulatory patients as well.

Day to day, the 7150-AC keeps things simple. Single-pass weighing with push-button tare lets staff subtract the chair and capture the patient weight in one motion, BMI calculates on board, and RS232, USB, and optional Ethernet or Wi-Fi/Bluetooth push results straight into the EMR. The 19-key color-coded sealed membrane keypad and large 7/8" weight digits keep operation readable and quick in a busy hallway.

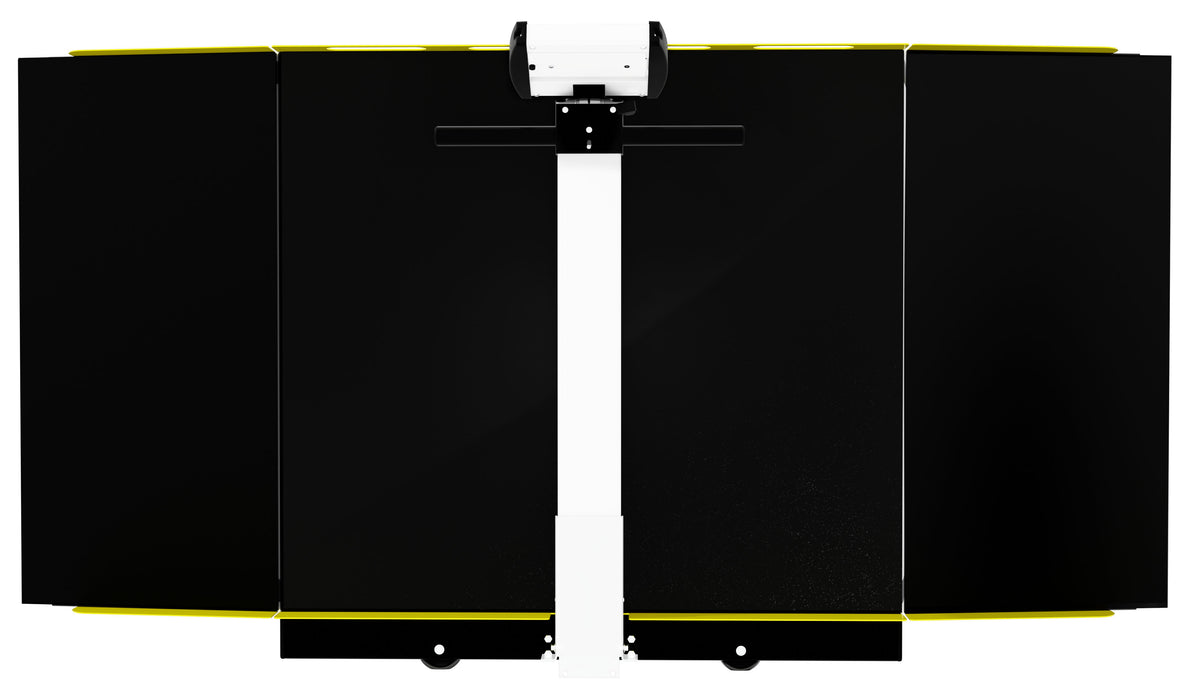

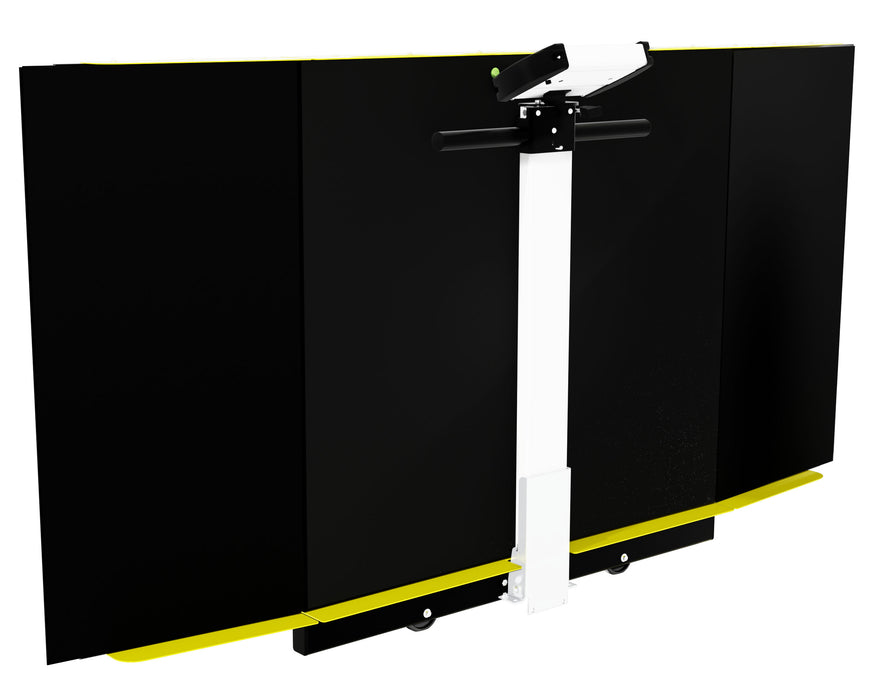

When the scale isn't in use, the column collapses with a quick-release lever and the frame folds down to just 11.4 inches deep, rolling out of the way on two integral transport wheels. It arrives 90% assembled, so setup is measured in minutes rather than hours.

Key Features

• NTEP certified — legal for trade and suitable for medication dosing accuracy
• 1,000 lb / 450 kg capacity, 0.2 lb / 0.1 kg divisions, 5,000 divisions max
• 40" long platform with 1:8 shallow-angle, floor-resting ramps
• Integrated side guide rails for safer positioning
• Low-profile 2" platform height
• Push-button tare for single-pass wheelchair weighing
• Built-in BMI calculation
• RS232 and USB standard; optional Ethernet or Wi-Fi/Bluetooth
• Folds to 11.4" deep with collapsible column and two transport wheels
• Ships 90% assembled

Specifications

Ideal For

Hospitals, clinics, physician offices, dialysis centers, rehabilitation facilities, and long-term care — anywhere ADA-accessible patient weighing is required.
