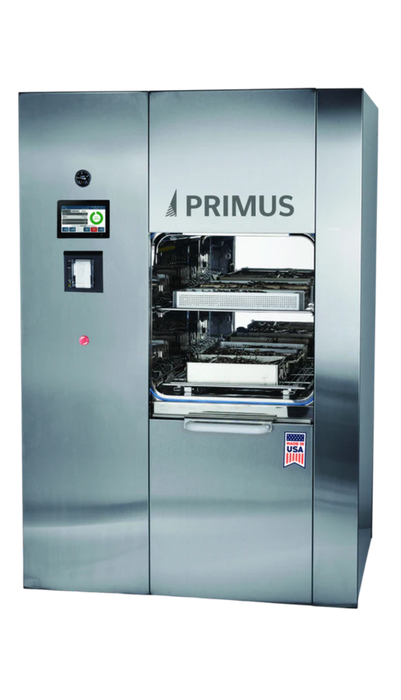

Primus 26" x 30" x 41" Steam Sterilizer
The PRIMUS Healthcare Sterilizer PSS11-HC is designed for use in surgery, central sterile, and surgery centers. Provides efficient steam sterilization of non-porous, heat, and moisture-stable materials. This unit is comparable to the industry standard 26" x 26" autoclaves.
The PRIMUS PSS11-HC Healthcare Sterilizer also offers high-performance, high-capacity steam sterilization for various instrument sets and medical devices up to 25 pounds each.
PRIMUS’s stainless steel, fully jacketed 316L chamber design (featuring PRIMUS’s brilliant PRI-Mirror™ chamber finish) ensures even heat and pressure distribution, which eliminates condensation during each sterilization cycle.
Furthermore, this Healthcare Steam Sterilizer is configured with pre-vacuum, gravity, liquid, and a Steam Flush Pressure Pulse (SFPP) testing cycle managed by the unit’s onboard operator-interface control panel.
- Lift-Off Cabinet Panels allow convenient access to sterilizer piping and control system.
- Software Calibration is provided for all temperature and pressure inputs.
- Cycle Data Records are recorded on the printer tape and saved to an SD card (provided).
- Automatic Steam Shutoff to Jacket provided for liquid cycles for efficient exhaust and cooling.
-
Insulated with one-inch thick, asbestos-free, and chloride-free fiberglass, sealed in an aluminum
outer cover. -
Stainless Steel Piping to Chamber components is constructed of 300 series stainless steel.
Safety Features
- Pressure relief valve
- Interlock to prevent opening both doors at
the same time (on double-door units) - Door and gasket safety switch
- Emergency stop button
- PRI Mirror Finish™ the smoothest, most durable
surface in the industry. - Resistance Temperature Detectors (RTDs) are
standard for sterilizer temperature control. - Ease of service
PRI-Matic® 100 PLC Control System
Cutting-edge and configurable PLC control system
Industry-leading, non-proprietary components comprise the PRI-Matic® 100 PLC Control System on board the PRIMUS Healthcare Sterilizer from Spire Integrated Solutions.
All control configurations are performed on the touchscreen display.
- (11) Preprogrammed, validated cycles
- (19) Additional cycles are available for
- customization to meet the criteria of
- varying instruction for use.
- Thermal printer
- Unload-side control panel
- SD card included
- Battery-backed memory
- Predictive maintenance
- Step detail screen
- User authorization levels
- Real-time trend graph data
Cycle configurations:
- User-access settings
- User-friendly menu
- Touchscreen sizes range from 5.7”- 12.1”
- Alarms
- Print intervals
- Printout units
- Security access code
- Selectable cycle name
- Temperature display
- Time display and printout units
PRI-SAVER Option
Optional vacuum source that saves water and energy
Why should you add the PRI-SAVER™ option?
HOW DOES THE PRI-Saver SAVE WATER?
Because the system decreases water consumption by up to 97% compared to a water ejector vacuum system.
HOW DOES PRI-Saver SAVE ENERGY?
- Operates on only 110 volts.
- Built into the sterilizer – doesn’t take up space in the service area.
- Notably reduces condensation inside the chamber.
- Reduces ambient noise compared to vacuum pump.
- Minimizes cycle times.
- Solves low inlet pressure, significantly improving the sterilizer’s performance.
- Optional vacuum source that saves water and energy.
House Steam Electrical Connection and Utilities Consumption
Sterilizer Dimensions & Capacities
