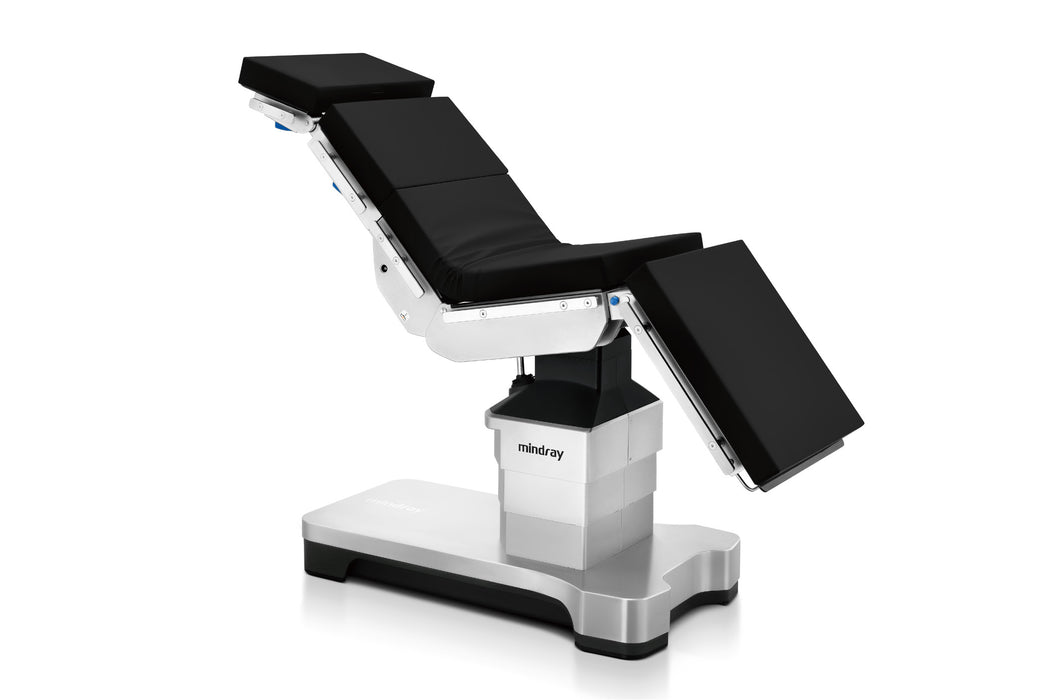

Mindray HyBase V6 Operating Table

With increasingly complex surgical procedures, today’s surgical environment requires a table that instantly adapts to all the versatility to provide the highest level of care.

• An extreme load capacity of up to 460 kg (1014 lbs).
• The longitudinal shift up to 350mm (23.6”) for free to access to C-arm.
• 600mm (23.6") is the lowest table position for neurosurgery, while 1,050 mm (41.3”) highest table position for orthopedics.
• 12 electric movements, such as table top up/down, slope and tilt, adapting to various surgical needs.
• Optional Bluetooth hand control for unobstructed control in operating rooms.
• Triple-layer decompression pad to redistribute the patient's weight.

Flexibility for multiple disciplines

Meeting the needs of different surgical positions

Modular Design

Surgical Disciplines

Flexibility for multiple disciplines

Cater to increasing endoscopic surgeries

Higher Imaging Quality

With the development of minimally invasive surgery (MIS), the requirement for better images during procedures arises. HyBase V6 allows clear, high-quality images crucial for today’s MIS, cardiothoracic, orthopedic, and neurosurgical procedures.

Huge Imaging Access

(Optional) Carbon fiber operating plate provides extreme imaging space. The carbon fiber tabletop ensures good radiolucent imaging with a wide imaging access and better radiolucency.

Optimal Stability

The table is designed to accommodate the highest safety and stability, with a load capacity of up to 460 kg (1014.1 lbs). All positions are permitted up to an overall load of 250 kg (551.1 lbs).

Better Exposure to Operating Field

For urologic surgery, the operating table has better exposure space and focus on water resistance. The HyBase V6 incorporates IPX5 protection against water jets from any direction.

Safety for various positions

Enhance Patient Safety

Manual Override System

Override System allows table articulation movements and release the brake in the event of primary control malfunction, through an independent hydraulic circuit.

Multi-layer Decompression Pad

Mindray introduces a new slow rebound decompression mattress. The multi-layer structure allows comfort to patient weight, excellent pressure distribution and safety against the lying on the tabletop plate.

• Ultra-sonically welded seams and waterproof
• Superior internal air circulation design

Compared with current mainstream products, our mattress has optimizing decompression effect, which can better disperse the pressure and reduce the risk of pressure ulcer.

Color-coded Indication Technology

During the tilt or slope adjustment, a color-coded indicator appears on the screen to show the angle and issue a timely warning when it comes to excessive Trendelenburg and reverse Trendelenburg positions.

Effciency in every step

Improve efficiency in the operating room

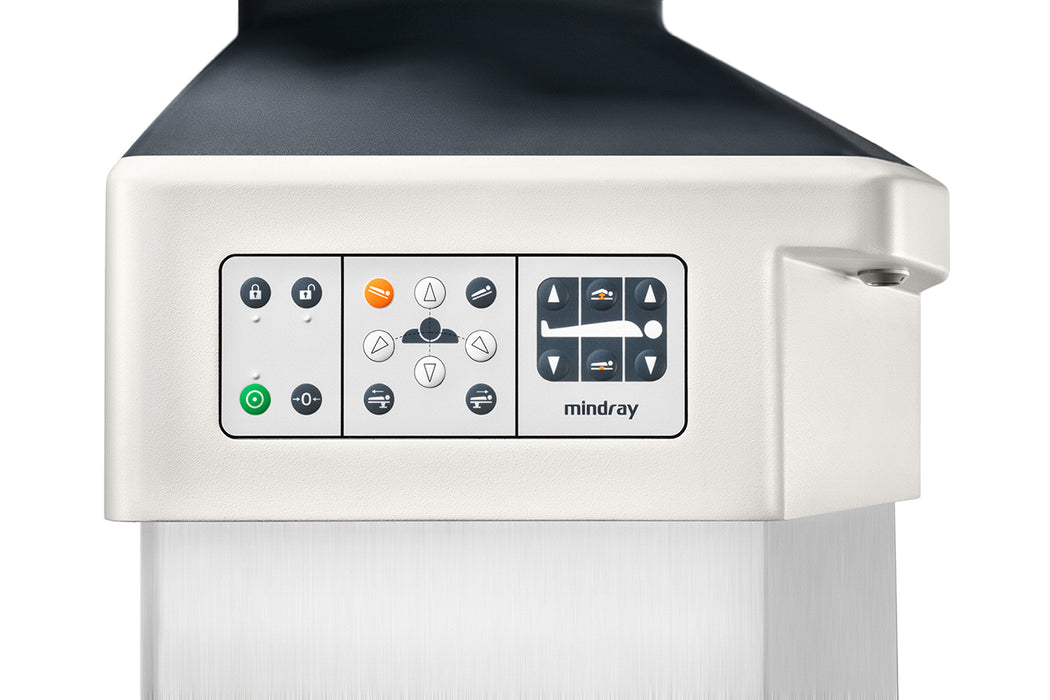

Intuitive icons with reasonable layouts

Easy to Adjust

Easy to Use

Easy to Clean
